Sherpa Gen 3
The Sherpa Gen 3 isn’t just a camper—it’s your gateway to total freedom, redefining what’s possible in off-road travel. No complex setup. Just park, deploy, and relax. With the Sherpa, you’re not limited by roads—or routines. Every element is purpose-built to support life off the grid, from the independent suspension to solar power integration and water systems. It’s lightweight, durable, and ready to go wherever your ambition takes you. This is not your average trailer. This is Sherpa. And it's built for the bold.

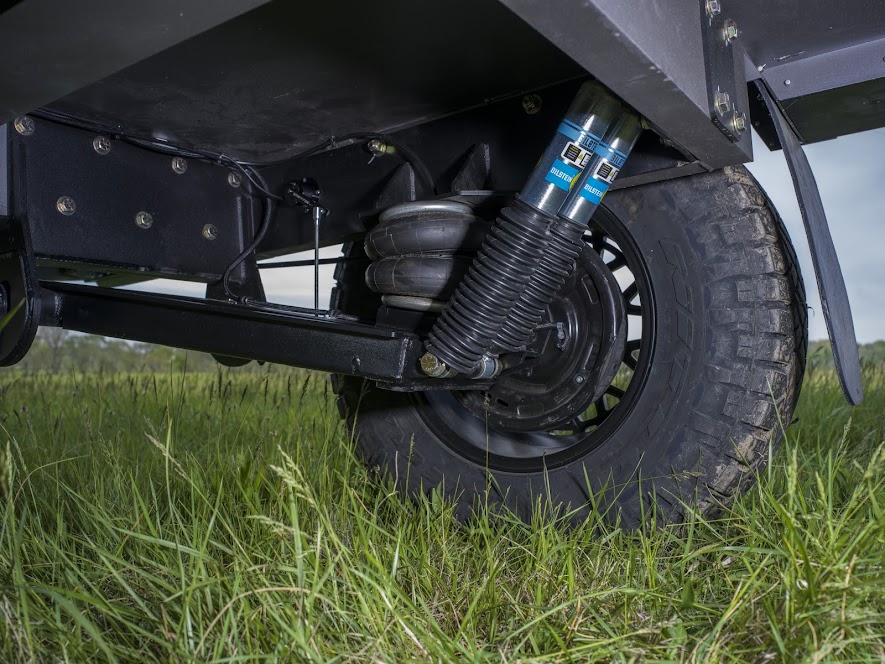

Suspension
Terraform suspension. Forged to dominate the harshest conditions, this system delivers an unmatched off-road experience. Integrated Air System offers three distinct ride height presets at your fingertips, eliminating the hassle of manual airbag adjustments.

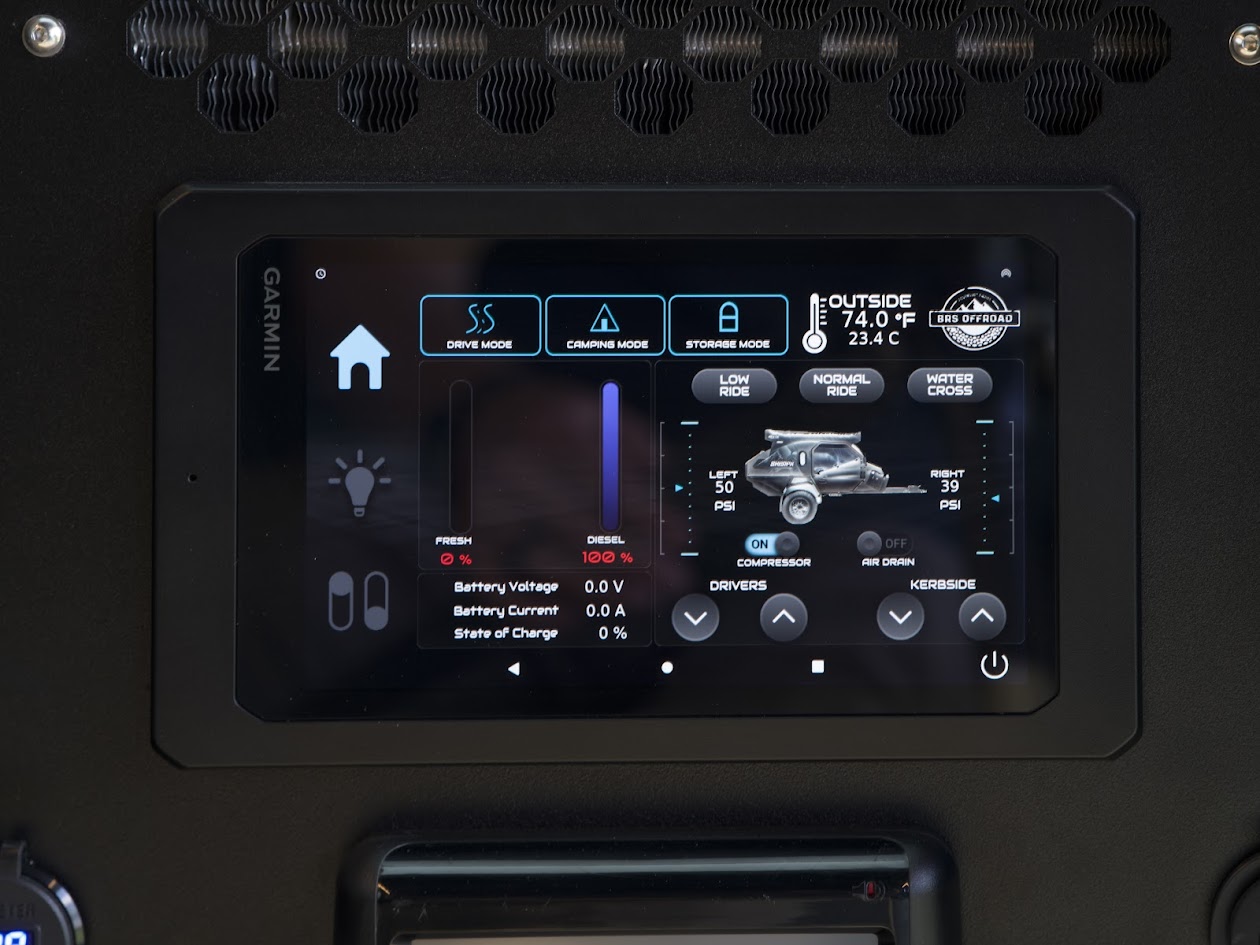

Garmin
The Sherpa Gen 3 features a fully integrated Garmin control system- the Serv, that brings advanced monitoring and management to your off-grid experience. This rugged touchscreen interface gives you real-time access to digital switching, diagnostics, and key systems—whether you're inside the cabin or checking from your phone via the RV Controls app.

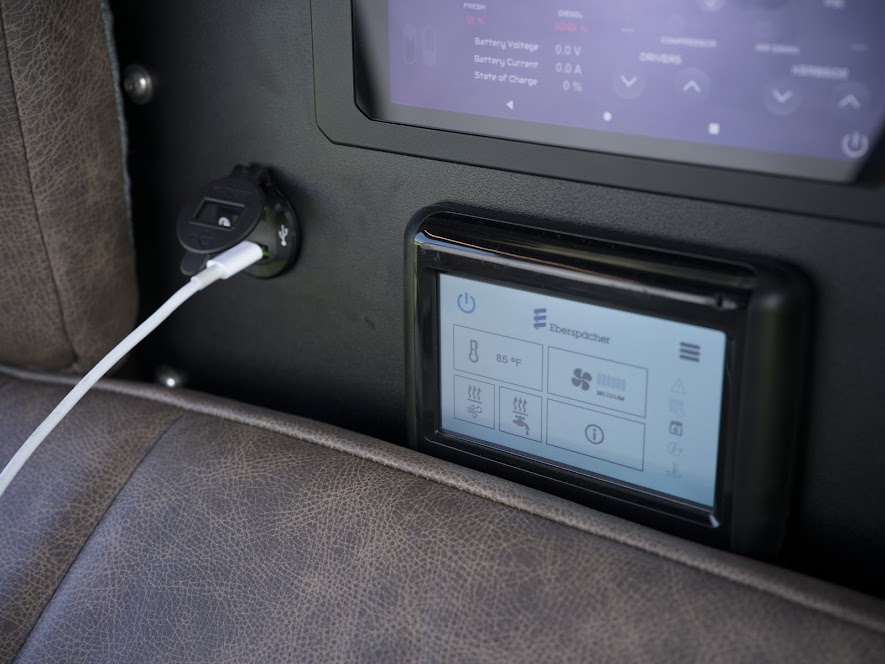

All Weather Off-Grid Heating System
Featuring a sophisticated, off-grid diesel heating and hot water system with dual matrix heaters, a high-capacity glycol reservoir, and strategically integrated heated glycol lines within the chassis. A convenient 110-volt heating element offers supplemental warmth when connected to shore power.
Features & Specifications
- 1-piece fiberglass cone 20mm thick with honeycomb core
- Insulated, hood-lined fiberglass front & rear hatch lids
- Powder-coated marine-grade aluminum body & components
- 150x100x6 fully integrated aluminum chassis beam
- 2T GTM BRS off-road suspension with Firestone airbags & Bilstein shocks
- 12” Dexter electric drum brakes with greaseable bearings
- 3x Nitto Ridge Grappler 285/75 R17 on KMC alloy wheels
- Side-mounted spare wheel (fits up to 35”)
- DO35 Cruisemaster coupler with integrated park brake
- Integrated aluminum stone deflector
- 2x ROTOPAX holders
- Remote-access fiberglass doors with acrylic windows, midge screens & blinds
- Internal cupboard storage & 5x pocket storage holes
- Automotive leather backrests with 2” foam
- 150mm foam queen mattress
- Marine-grade hood lining ceiling & walls
- Jockey Wheel Ark750 & 2x pull-out ladders
- 2x aluminum operable port windows
- 10L aluminum diesel tank with sender
- 140L roto-molded poly water tank with sender
- Joolca double shower cube
- The Bush Company 270XT Max awning
- ARB compressor & tank with coupler outlet
SmartRide ride height sensors - Enerdrive (Kisae) 40A DC-DC & AC chargers
- Battleborn 270Ah lithium battery (optional additional)
- Dometic flush-mount dual-burner gas cooker
- 2x Sirocco 12V fans
- Garmin digital switching (Connect50)
- 7” Garmin touchscreen
- Proprietary digital mapping & control system
- Fusion Hideaway Marine audio system
- 4x 5.5" Kicker interior speakers
- 23.6” HD Smart TV with omnidirectional antenna
- Radio antenna
- 300mm amber/white kitchen light
- 300mm external awning lights (amber/white)
- 2x dimmable internal strip lights
- 2x double 2.4A USB chargers & 12V outlets
- 2x Isotherm 30L drawer fridge/freezer units
- Eberspacher diesel hot water/space heater combi
- 6L glycol storage with chassis heating (anti-freeze)
- Hot/cold mixer taps at kitchen & shower (flexi hose)
- ABS molded sink, storage nooks & internal door panels
- 2x 4kg gas bottles
Technical Specifications
- Width - 2060mm (6.7ft)
- Overall Length - 4450mm (14.5ft)
- Body Length - 3700mm (12.1ft)
- Ride Height - 2180mm (7.1ft)
- Storage Height (Bags Deflated) - 2100mm (6.8ft)
- Tare - 920kg - 1150kg (2028lbs - 2535lbs)
- Tare Ball Weight - 140kg - 165kg (308lbs - 363lbs)
- GVWR - 2000kg (3747lbs)
- Suspension - Independent Air Suspension with
- Bilstein Shocks
- Body Construction - Marine Grade & 5083/5055 Alloys
- Top Cone - Composite Fiberglass, 21mm Wall
- Chassis - Hollow Section Aluminum
- Fresh Water Capacity - 140 Litres (36 Gallons)
- Fridge Capacity - 60 Litres (15 Gallons)

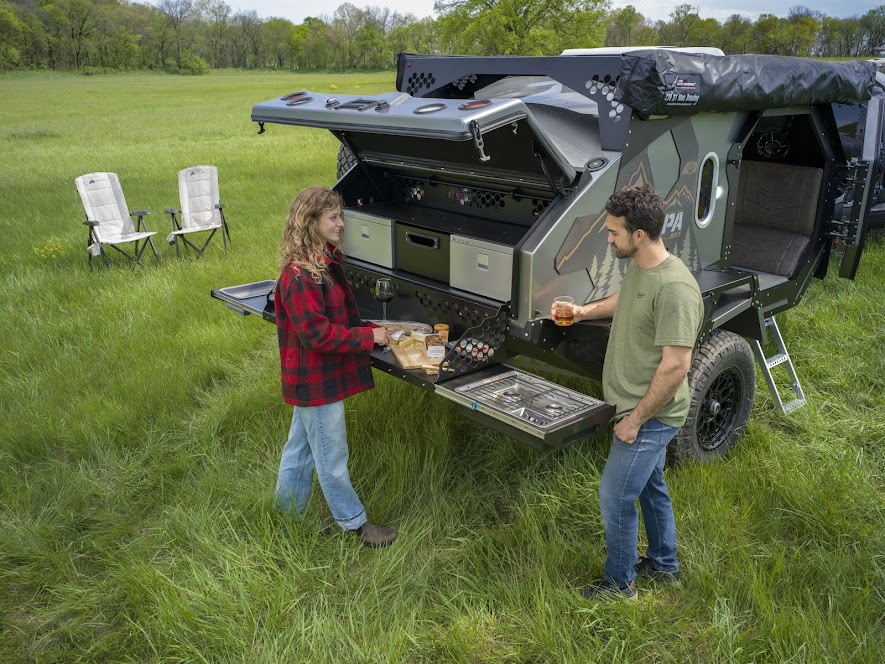

Full-Featured Kitchen
The Sherpa kitchen empowers your culinary freedom. Including a slide-out sink, a dual-burner Domestic cooktop, generous countertop space and dual Isotherm drawer fridge freezers.

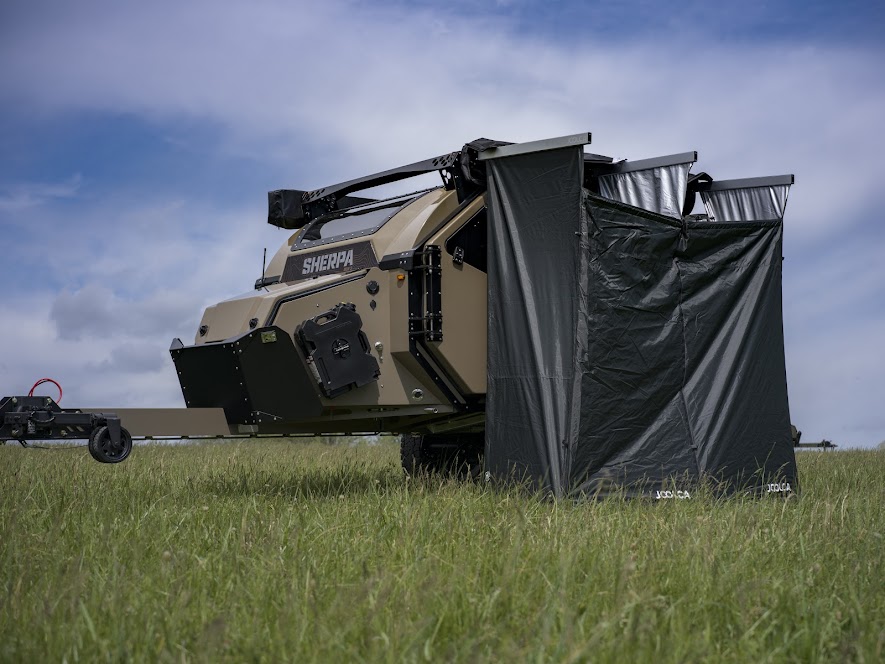

Shade and Shower
Effortlessly extend your shaded sanctuary with the impressive 270XT Max awning Joolca Double Shower Cube. The Sherpa Gen 3 ensures that even the most fundamental aspects of off-grid living are handled with ease and sophistication.

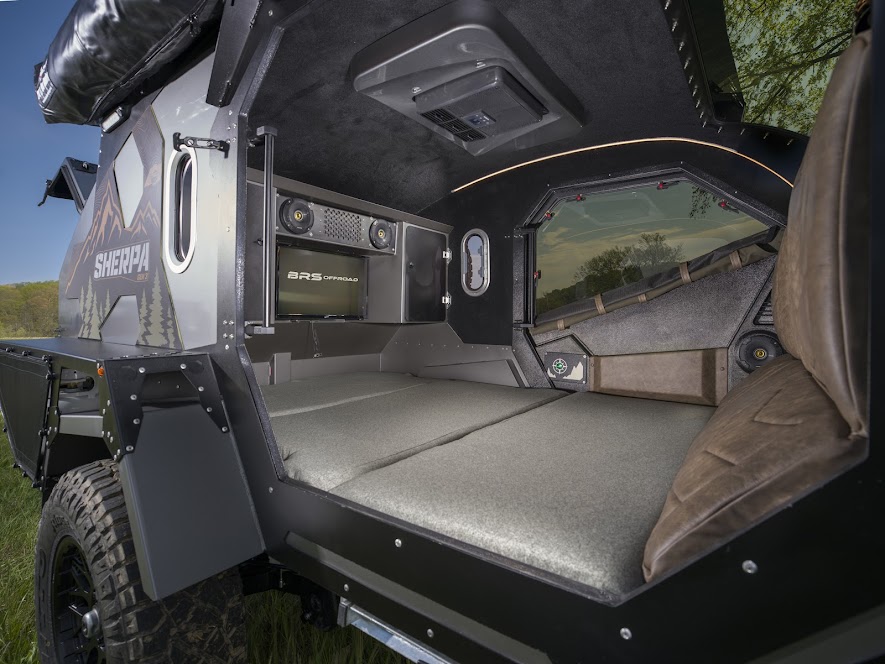

Sleeping quarters
Relax against upholstered backrests and enjoy your favorite shows on the 24” smart TV. Smart storage solutions keep your gear organized, making every adventure more indulgent and restful.

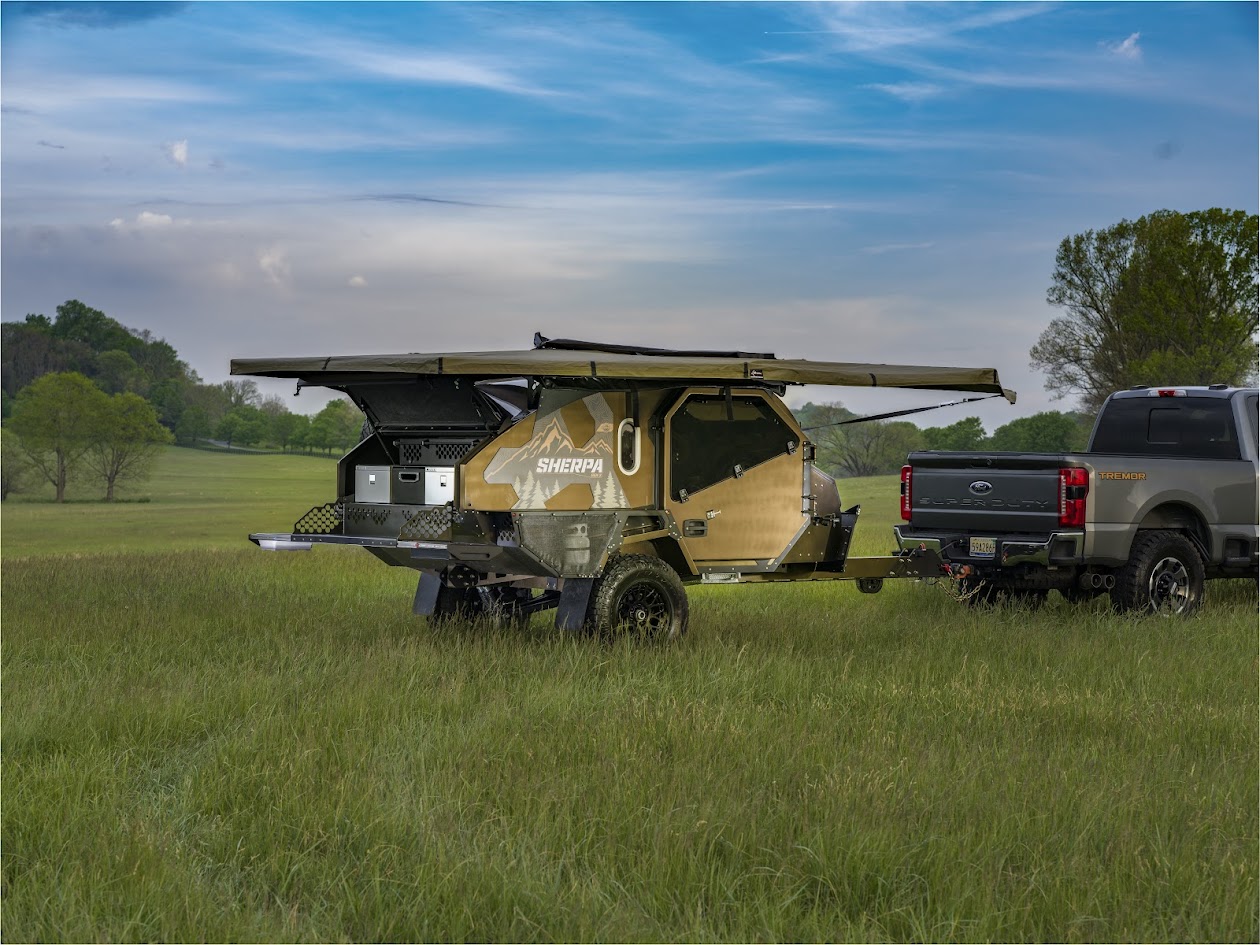

Australian designed, American made, Engineering freedom.
With a commitment to innovation, quality, and durability, BRS Offroad continues to push the boundaries of what’s possible in off-grid exploration. We believe the journey should be just as rewarding as the destination and that your gear should never hold you back.
Wherever your path leads, BRS Offroad is built to take you there.
