Voyager Overland

Born from decades of exploration in the most extreme off-road environments in nearly every corner of the Rockies, the Voyager trailer enables exploration where others would consider impossible while bringing a new level of comfort and enjoyment to the outdoors.
Available Inventory

Chef's Kitchen

For the outdoor adventurer who loves to cook, the Voyager boasts a 12ft wide slide-out kitchen allowing for 3-4 adults to be prepping and cooking in the kitchen area at the same time.   With over 14 sq feet of counter space, custom spice & utensil door organizer, stainless steel fold-down prep table, removable butcher block, a 75L dual-zone fridge/freezer, and 36 gal of freshwater, even the most discerning chefs can prepare their favorite dishes.
Learn More

Technology

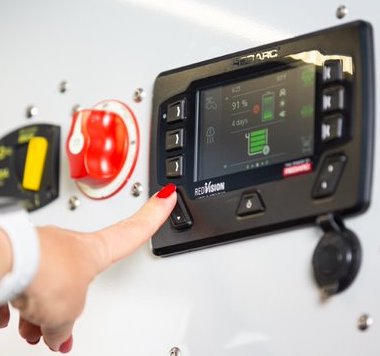

Redarc RedVision Total vehicle management system provides unparalleled functionality providing total battery management through 12v to 12v charging (vehicle to vehicle), 110v charging/maintaining, and solar charging. It also provides water tank monitoring as well as switching electrical circuits all through an easy-to-use 4” color display or via Bluetooth to your phone.
Learn More


2023 Wrap Designs

Check out the 2023 wrap options available for you!



Not ready to buy? Want to test out the unit you are interested in?

View Rentals

Features & Specifications

       Specifications

  • Gross Weight Rating: 4200lbs.
  • Base Trailer Dry Weight: 2600lbs
  • Overall Length: 192”
  • Overall Width: 89”
  • Overall Height: 82”
  • Ground Clearance: 18”
  • Track Width: 75”
  • Interior Length: 86.5”
  • Interior Width: 55.5"
  • Interior Height: 48"
  • Mattress Size: 53” X 75"-80”
  • Freshwater Capacity: 36gal
  • X-Ride Suspension
  • Dual 115Ah AGM batteries
  • Redarc RedVision
  • 360-degree Maxcoupler Hitch
  • Extreme off-road jack
       Main Cabin
  • 130 Cubic Feet of fully insulated living space
  • Interior Measurements: 86.5 Length, 55.5” Wide, 48” Height
  • Engineered Composite Wood Flooring
  • A mattress that folds into a couch enabling you to convert the space.
  • Dimmable overhead LED lighting
  • Dimmable reading light with nightlight mode and USB charging
  • Fantastic Vent Fan with 3 speeds including reverse function.
  • 26” X 36” Dual side doors with windows/screens
  • Cabinetry with 10,780 cubic inches or 10 cubic feet of storage space
  • 12v console with 4 additional USB charging ports and 1- 12v socket for powering vehicle accessories.
  • 1000w inverter
  • 110v outlet with remote control for 1000w inverter.
  • *Optional 2000w inverter
  • *Optional Webasto EVO 40 diesel heater with auto altitude adjustment and exterior port for the heating annex or rooftop tent.
  • *Optional Bunk Bed / Gear shelf (55” X 28”)
       Kitchen Area
  • Driver side cooler/fridge access door
  • Driver side cooler/fridge pullout with folding shelf (500lb locking slides)
  • Stainless Steel fold down prep table (34.25” X 23”)
  • 14 Sq/Ft. Built-in kitchen counter space
  • 12ft overall kitchen width enables multiple people to enjoyably work without getting in each other's way.
  • Over 15 cubic feet of dedicated kitchen cabinet & drawer storage
  • Cabinet fold-down shelf enables dual side access to middle cabinet enabling easy access to commonly used food items, also doubles as additional counter space and dish drying area above sink.
  • 2 Sq/Ft. Removable butcher block in 5” deep kitchen drawer
  • Passenger side sink/stovetop access door
  • Passenger side Stainless Steel sink/stovetop pullout
  • *Optional Passenger side sink/stovetop access door organizer that provides dedicated storage area for spices, mugs/cups, kitchen utensils
  • *Optional Dometic 75L dual zone fridge freezer

  • X-Ride Suspension

    The X-Ride Suspension is a multi-part system designed around and principally for the Voyager trailer. The sub-frame Z-plates cradle the aluminum frame of the Voyager, providing an unparalleled robust connection. The crossmember,  is engineered to withstand the dynamic loading of off-road abuse and provide a rock-solid connection between the Sub-Frame Z-Plates and the A-Arms.


  • Truma Combi Hot Water Heater and Furnace

     A 2.64 gal. (10L) water tank, which is also heated in winter, is integrated into the heating system. In summer mode, you can heat the water independently of the furnace. The warm air flows into the vehicle’s interior through four air outlets, where it is distributed optimally to ensure a pleasant indoor climate. The Truma Combi heater is almost silent and extremely economical to run.

  • Red Arc ​​​​​​​Red Vision

    Redarc RedVision Total vehicle management system provides unparalleled functionality, total battery management through 12v to 12v charging (vehicle to vehicle), 110v charging/maintaining, and solar charging. It also provides water tank monitoring as well as switching electrical circuits all through an easy-to-use 4” color display or via Bluetooth to your phone.

  • Multiple Configurations

    Outfit the Voyager with an endless combination of RTTs, awnings, and a sleeping annex allowing large families of 7 to sleep comfortably.

  • Kitchen Storage

    A luminous galley-style kitchen equipped with 3 separate prepping areas, 3 extra-large cabinets an oversized drawer with a cutting board, 2 pull-outs that can be used in multiple configurations, and a door organizer for all your spices, cooking utensils, and tableware.

  • 4-Season Capabilities

    Whether you are camping in the middle of Summer, the dead of Winter or enjoying a brisk Fall morning. The Voyager has you protected. with the warmth of the Truma hot water heater and furnace, the protected water lines and configurable awnings to protect from the sun and rain, each season is thought of.
